리졸버

리졸버(Resolver)는 회전 위치와 속도 정보를 검출하는 회전형 위치 센서입니다. 높은 내환경성과 내진동 특성을 갖추고 있어 극한 산업 환경에서도 안정적인 위치 제어가 가능합니다. 항공·방산·로봇·모터 제어·산업 자동화 설비 등에 적용되며, 고온·고진동 환경에 적합한 것이 특징입니다. 코비스는 AMCI를 비롯한 다양한 리졸버 제품의 공급 및 기술 대응이 가능합니다.

빠른 검색을 원하시면 사양을 선택해 주세요.

1/2 page

    select * from product where pd_status='1' and c_2category='7' order by pd_favor asc limit 0, 12
  • DMR-26-03 Multispeed Pancake
    • Input Voltage 4.4 (±5%) (V(rms))
    • Frequency 2 (±1.5%) (kHz)
    • Phase shift 0 ÷ 7.5 (deg)
    • Null Voltage 20 (max) (mV)
    • Accuracy ±20 (arc sec)

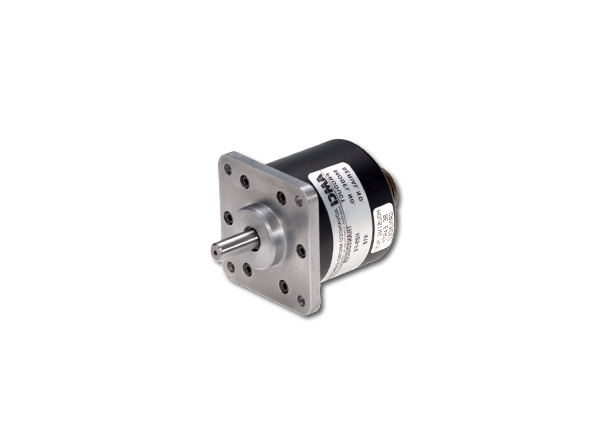

  • HT-20-X Multi-turn Geared Resolver Tranducer
    • Rotor Input(V) 7.0 V rms
    • Frequency5,000Hz
    • Phase Shift10° max
    • Stator Output(V)6.65 V rms
    • Accuracy Max. error ±7 minutes

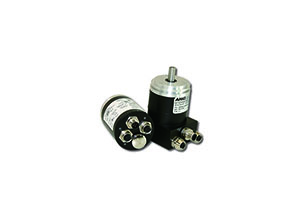

  • NR25 Networked Resolver
    • Output CodeEtherNet/IP, Modbus-TCP, Profibus-DP, or DeviceNet
    • ResolutionSingle Turn = 65536 counts max Multi Turn = (2 versions) 65536 counts / turn & 4096 turns maximum 65536 counts / turn & 16384 turns maximum
    • DirectionProgrammable over the network default = CW increasing looking at the shaft
    • Parameters- Direction of Increasing Counts - Counts Per Turn - Velocity Units - Preset Function - Total Measurement Range (defines the number of counts where the position rolls over to zero)
    • Time StampOptional input data that replaces the Velocity. Time stamp is an unsigned double integer value with an interval of 400 nanoseconds; rolls over every 1717.9869184 seconds

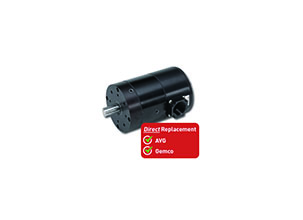

  • H25 Allen-Bradley 846 Resolver Re.
    • Input Voltage12.0 V
    • Frequency2,500 Hz
    • Resolver TypeControl Transformer
    • Output Voltage6.00 V Nom.
    • Accuracy± 12 min. (max error)

  • R11 - Size 11 Brushless Resolver Sensors
    • Input Voltage7.5V
    • Frequency4,000Hz
    • PriR
    • Output Voltage4.0 (V)
    • TR0.54

  • H25 Single-turn Stainless Steel Resolver Transducer
    • Input Voltage7.0 V rms
    • Frequency5,000 Hz
    • Phase Shift10° max.
    • Stator Output(V)6.65 V rms
    • Accuracy max. error ±10 minutes

  • EMR-2509 Multispeed Pancake
    • Input Voltage5 (±5%) (VAC)
    • Frequency2.4 (±1.5%) (kHz)
    • Phase shift 0-45 (deg)
    • Null Voltage 5 (max) (mV)
    • Accuracy ±40 (arc sec)

  • HT-400-X Multi-turn Geared Resolver Tranducer
    • Rotor Input(V) 7.0 V rms
    • Frequency5,000Hz
    • Phase Shift10° max
    • Stator Output(V)6.65 V rms
    • Accuracy Max. error ±7 minutes

  • NR60E2 Networked Resolver
    • Output CodeEtherNet/IP, Modbus-TCP, & Profinet
    • ResolutionSingle Turn = 65536 counts max Multi Turn = (2 versions) 65536 counts / turn & 4096 turns maximum 65536 counts / turn & 16384 turns maximum
    • DirectionProgrammable over the network default = CW increasing looking at the shaft
    • Parameters- Direction of Increasing Counts - Counts Per Turn - Velocity Units - Preset Function - Total Measurement Range (defines the number of counts where the position rolls over to zero)
    • Requirements(P)12 to 54Vdc / 2.5 W maximum / 100mA @ 24Vdc

  • H25 Single-turn Resolver Transducer .
    • Input Voltage7.0 V rms
    • Frequency5,000 Hz
    • Phase Shift10° max.
    • Output Voltage6.65 V rms
    • Accuracymax. error ±10 minutes

  • HT-20C Single-turn Stainless Steel Resolver Transducer
    • Input Voltage7.0 V rms
    • Frequency5,000 Hz
    • Phase Shift9° max.
    • Stator Output(V)6.65 V rms
    • Accuracy max. error ±7 minutes

  • MR-15-12 Pancake Type
    • Input Voltage6 (V(rms))
    • Frequency4.0 (kHz)
    • Phase shift 5 (±5°) (deg)
    • Null Voltage Total null 15 / Fundamental null 10 (mV)
    • Accuracy ±45 (arc min)
