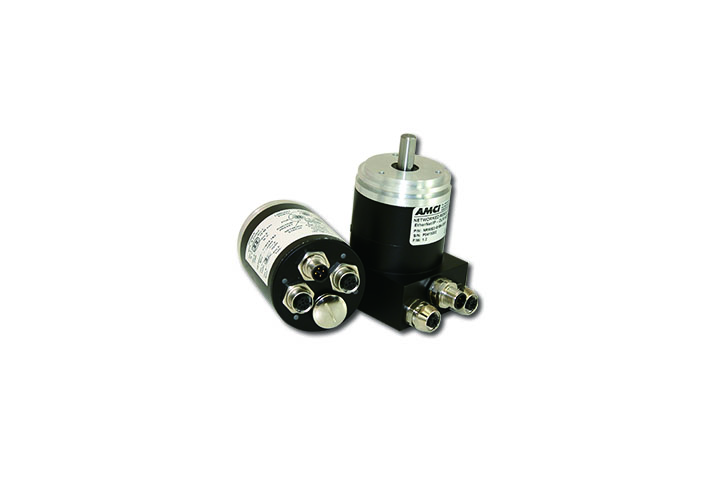

NR60E2 Networked Resolver

NR60E2 series of heavy-duty Networked Resolvers are compatible with all PLCs/PACs that support EtherNet/IP, Modbus-TCP, or Profinet. The NR60E2 series networked resolvers are available in absolute single-turn and multi-turn packages using an IP67 rated 60

  • Dual-port networking offers offers DLR for EtherNet/IP & MRP for Profinet
  • Multi-protocol - EtherNet/IP, Modbus-TCP, & Profinet networks built-in
  • Single-turn resolution up to 16 bit
  • Multi-turn resolution up to 30 bit
  • IP67 Ingress Protection Rating
  • Solid shaft and hub shaft versions
  • Allen-Bradley 842e series replacement

제품 사양

  • Output Code
    EtherNet/IP, Modbus-TCP, & Profinet
  • Resolution
    Single Turn = 65536 counts max Multi Turn = (2 versions) 65536 counts / turn & 4096 turns maximum 65536 counts / turn & 16384 turns maximum
  • Direction
    Programmable over the network default = CW increasing looking at the shaft
  • Parameters
    - Direction of Increasing Counts - Counts Per Turn - Velocity Units - Preset Function - Total Measurement Range (defines the number of counts where the position rolls over to zero)
  • Requirements(P)
    12 to 54Vdc / 2.5 W maximum / 100mA @ 24Vdc

※ 해당 제품에 대한 자세한 내용은 사양서 또는 당사 문의처로 연락 바랍니다.

제품 치수

※ 해당 제품에 대한 자세한 내용은 도면 또는 당사 문의처로 연락 바랍니다.
